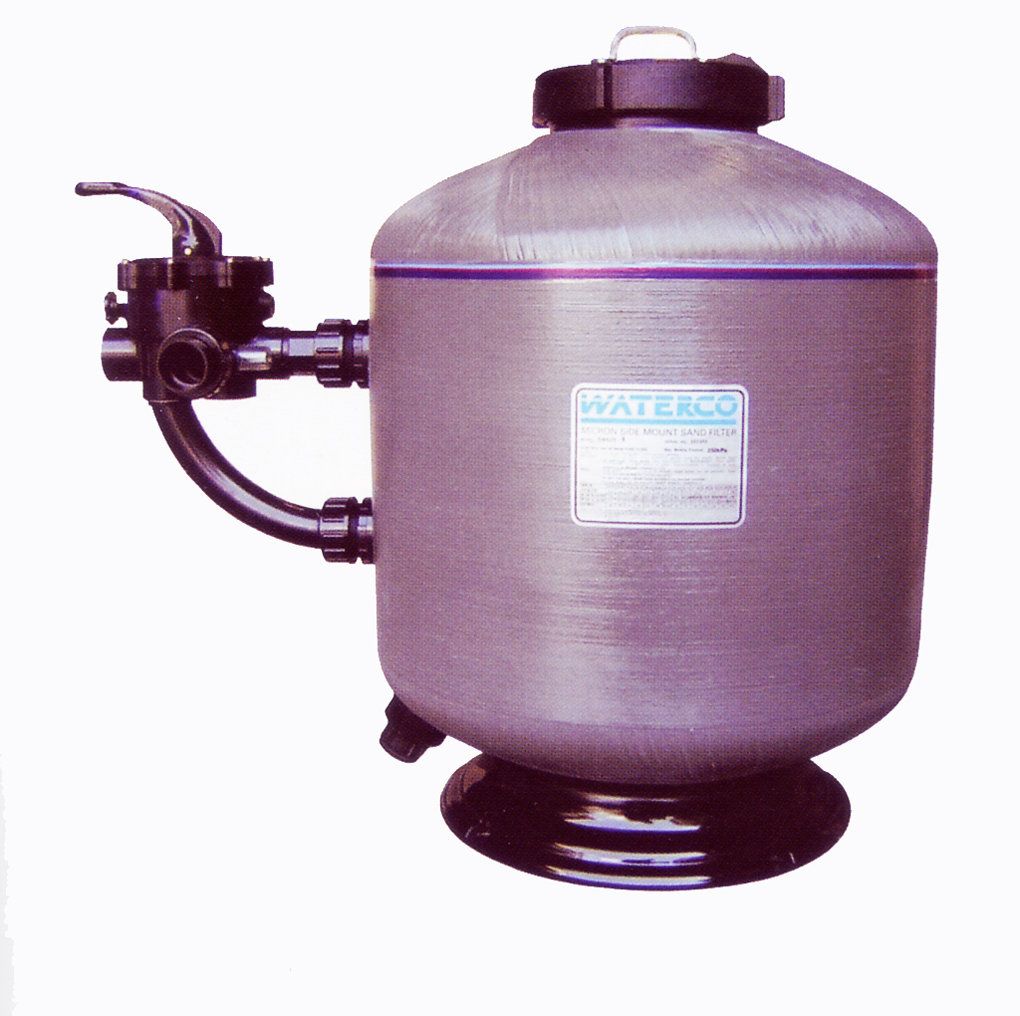

Waterco Micron sidemount filter

Waterco Micron Bobbin Wound Side Mount Filter with Multiport Valve

Waterco Micron Bobbin Wound Side Mount Filters are the latest addition of innovative filters. Uniquely,  they feature a fishtail lateral configuration, which offers superior filtration by eliminating the dead areas commonly associated with a traditional star design. They are manufactured from the highest grade of non-corrosive materials and employ the latest in fibreglass winding technology. Micron Fibreglass filters are designed and built for many years of trouble free operation.



Full Description



Features:

  • Pressure rated at 2.5 BAR (36 psi)
  • UV and Corrosion resistant
  • Hydraulically balanced lateral configurations
  • Inflow diffuser for even water flow across the filter bed
  • Six way valve with sight glass and quick connect unions
  • Fibreglass wound by the very latest winding technology
  • Inner shell of fibreglass reinforced polyester resin
  • 8" clear access lid
  • Duel function/large sand dump port allows easy winterisation, and sand or glass changes
  • 30% reduction in water used during backwashing
  • 10 year warranty on residential installations

Note: Filter media not included

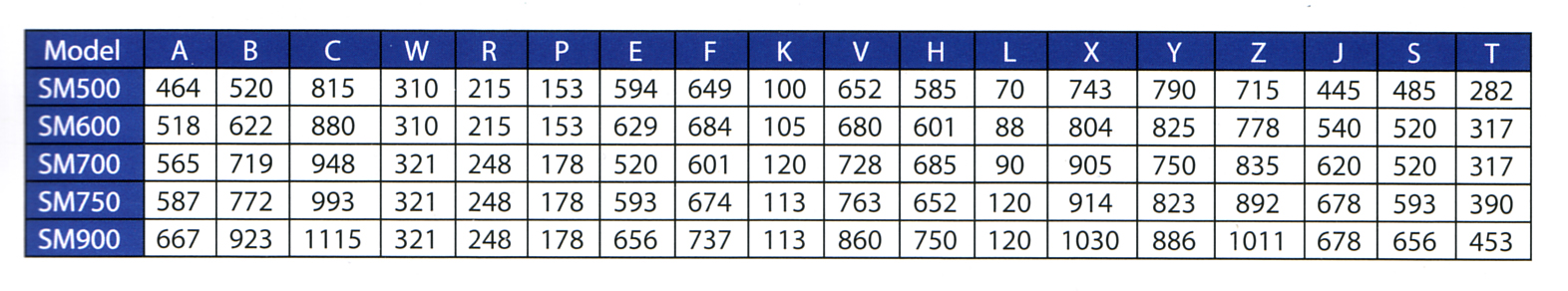

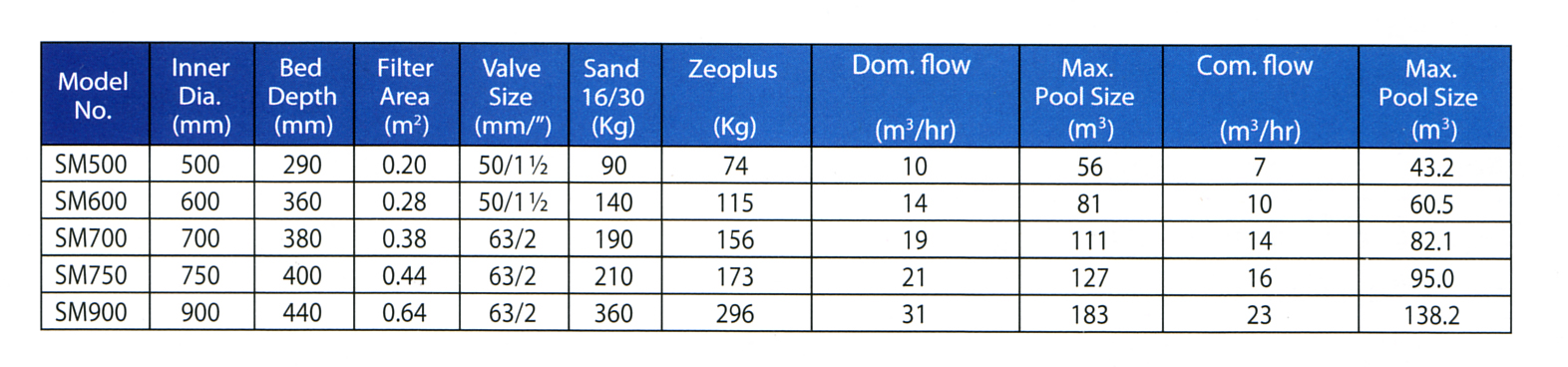

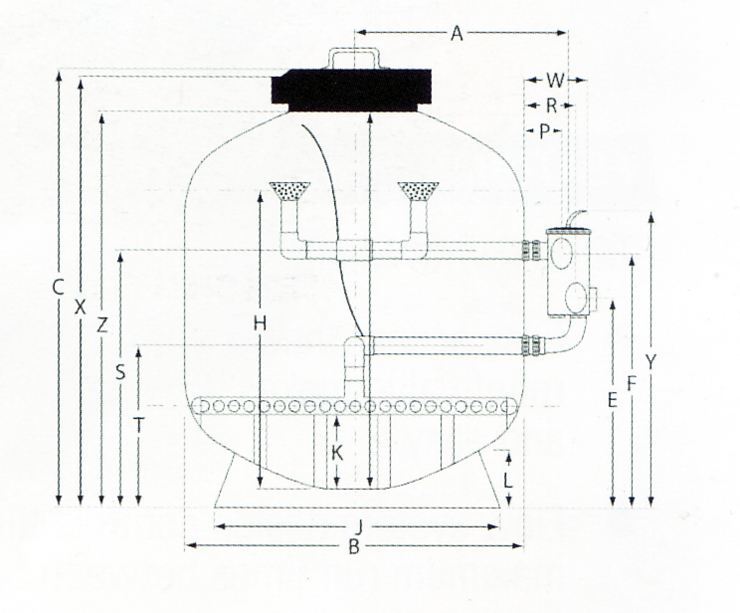

waterco micron dimensions diagramWaterco dimensions chartWaterco specifications chart
