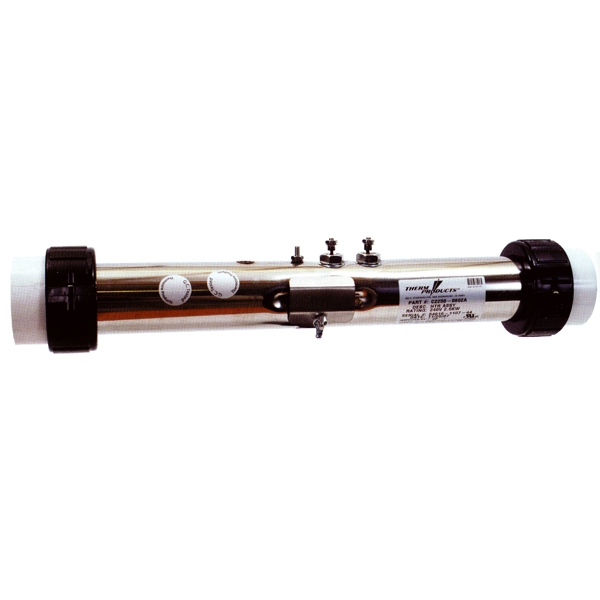

| Type of product: | Heater assembly |
| Make and Model: | Thermcore, Gecko, HydroQuip, RMF...
C2250-0802A, |
| Power: | Volts: 230
Hz: 50
KW: 2.5
Amps: 10-10.5 |
| Specification | Sensor compatibility: Has a pocket for the high limit sensor or can be used with the hi limit ribbon style also
Material spec:
Required flow rate: Set by pressure switch
Flow detection: 2-PSI Tecmark pressure switch |
| Compatible with: | HydroQuip 6000 series found in Gulf Coast, Sierra Spas, Southwest Spas and more. Also SSPA low end assembly including Sunrise Spas, LA Spas, Dimension 1 (home series), Coyote Spas, Hotspot by Hotspring and more |
| Connections / Fixings: | Usually held in with a double aluminum brace. Hi limit sensor pouch on underside. 2" white plastic female sockets to connect to plumbing |
| Dimensions: | Heater length: 15 inches
Heater Diameter: 2 inches
Between terminals: 1.25 inches
Overall length complete: 19.5 inches |
| Additional notes: | Commonly used with a Tecmark pressure switch. This heater may also have a label saying, Thermcore, Gecko, Hydroquip or another but if it looks the same it most probably is, contact us if you are unsure |
