Balboa 2.0kW Heater M7

Balboa Hot Tub Heaters

We stock a wide range of Balboa Hot Tub Heaters and replacement Heater Elements.

Full Description

Balboa 2.0kW Heater M7

Balboa 2.0KW Heater M7

Type of product: Heater assembly
Make and Model: Balboa
Power: Volts: 230
Hz: 50
KW: 2.0
Amps: 8.0-8.5
Sp ecification Sensor compatibility: M7 24" x 2
Material spec: Incoloy
Required flow rate: 21gpm
Flow detection: M7 Technology by using a sensor at each end of the heater assembly
Compatible with: Duplex Value Pack, Super Duplex Pack, Spaform SF172, Catalina, Hydropool, Canadian Spa, Hyrdospa, Marquis Spa, Aegean, Leisurite, Leisure Bay, Signature Spas, Touch Spas, Hot Tubs Direct and more...
Connections / Fixings: Usually held in with a double metal brace. 2" white plastic female sockets to connect to plumbing
Dimensions: Heater length: 15 inches
Heater Diameter: 2 inches
Between terminals: 1.25 inches
Overall length complete: 19.5 inches
Additional notes: You may find cheaper versions of this heater on the internet but they are most likely cheap copies. If it is not an official Balboa product with genuine labeling do not buy it.

If your heater looks the same as this one it most probably is but contact us if you need further help.

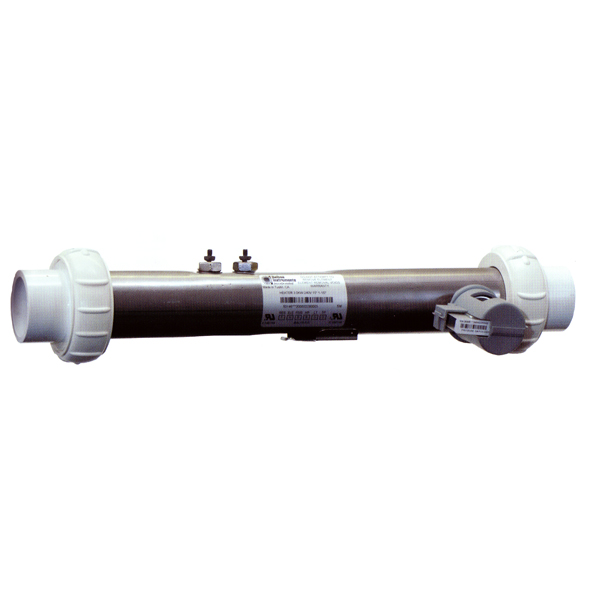

Balboa 2.0KW Heater with Pressure Switch

Type of product: Heater assembly
Make and Model: Balboa
Power: Volts: 230
Hz: 50
KW: 2.0
Amps: 8.0-8.5
Specification Sensor compatibility: Pre M7 double harness style
Material spec: Incoloy
Required flow rate: Set by pressure switch
Flow detection: 2-PSI Balboa pressure switch
Compatible with: Lite leader box, M3 TUV, Spaform SF100, Catalina, Hydropool, Canadian Spa, Hyrdospa, Marquis Spa, Aegean, and more...
Connections / Fixings: Usually held in with a double aluminum brace. Hi limit sensor pouch on underside. 2" white plastic female sockets to connect to plumbing
Dimensions: Heater length: 15 inches
Heater Diameter: 2 inches
Between terminals: 1.25 inches
Overall length complete: 19.5 inches
Additional notes: You may find cheaper versions of this heater on the internet but they are most likely cheap copies. If it is not an official Balboa product with genuine labeling do not buy it.

If your heater looks the same as this one it most probably is but contact us if you need further help.

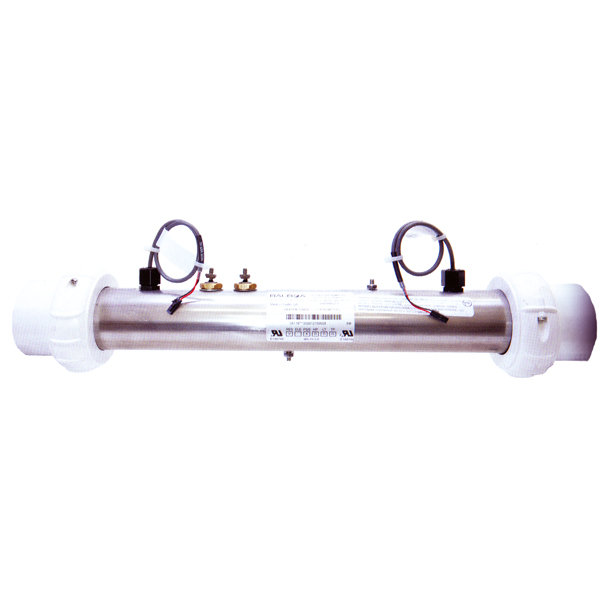

Balboa 2.0KW M7 Heater with Studs (GS-GL)

Type of product: Heater assembly
Make and Model: Balboa



Power:
Volts: 230
Hz: 50
KW: 2.0
Amps: 8.0-8.5
Specification Sensor compatibility: M7 24" x 2
Material spec: Incoloy
Required flow rate: 21gpm
Flow detection: M7 Technology by using a sensor at each end of the heater assembly
Compatible with: GS500, GS500Z, GS501, GS501Z (with 2.0KW on label only)
Connections / Fixings: Usually held in with two fixing studs, one at the top and one underneath. 2" white plastic female sockets to connect to plumbing
Dimensions: Heater length: 15 inches
Heater Diameter: 2 inches
Between terminals: 1.25 inches
Overall length complete: 19.5 inches
Additional notes: You may find cheaper versions of this heater on the internet but they are most likely cheap copies. If it is not an official Balboa product with genuine labeling do not buy it.

If your heater looks the same as this one it most probably is but contact us if you need further help.

Balboa 3.0KW Heater M7

Type of product: Heater assembly
Make and Model: Balboa
Power: Volts: 230
Hz: 50
KW: 3.0
Amps: 11.5-12.0
Specification Sensor compatibility: M7 24" x 2
Material spec: Incoloy
Required flow rate: 21gpm
Flow detection: M7 Technology by using a sensor at each end of the heater assembly
Compatible with: 2005 LE, Elite M7, Duplex Value Pack, Super Duplex Pack, GL2000 (old metal style), GL8000, Catalina, Hydropool, Canadian Spa, Hyrdospa, Marquis Spa, Aegean, Leisurite, Leisure Bay, Signature Spas, Spaform, Touch Spas, Hot Tubs Direct and more...
Connections / Fixings: Usually held in with a double metal brace. 2" white plastic female sockets to connect to plumbing
Dimensions: Heater length: 15 inches
Heater Diameter: 2 inches
Between terminals: 1.25 inches
Overall length complete: 19.5 inches
Additional notes: You may find cheaper versions of this heater on the internet but they are most likely cheap copies. If it is not an official Balboa product with genuine labeling do not buy it.

If your heater looks the same as this one it most probably is but contact us if you need further help.

Balboa 3.0KW Heater M7 with Studs (GS-GL)

Type of product: Heater assembly
Make and Model: Balboa
Power: Volts: 230
Hz: 50
KW: 3.0
Amps: 11.5-12.0
Specification Sensor compatibility: M7 24" x 2
Material spec: Incoloy
Required flow rate: 21gpm
Flow detection: M7 Technology by using a sensor at each end of the heater assembly
Compatible with: GS500, GS500Z, GS501, GS501Z (with 3.0KW on label only), GS501SZ, GS510, GS510S, GS510Z, GS510SZ, GS511SZ, GS523DZ, GL2000 mach 3, GL2001 mach 3 and more
Connections / Fixings: Usually held in with two fixing studs, one at the top and one underneath. 2" white plastic female sockets to connect to plumbing
Dimensions: Heater length: 15 inches
Heater Diameter: 2 inches
Between terminals: 1.25 inches
Overall length complete: 19.5 inches
Additional notes: You may find cheaper versions of this heater on the internet but they are most likely cheap copies. If it is not an official Balboa product with genuine labeling do not buy it.

If your heater looks the same as this one it most probably is but contact us if you need further help.

Balboa 3.0KW Heater with Pressure Switch

Type of product: Heater assembly
Make and Model: Balboa
Power: Volts: 230
Hz: 50
KW: 3.0
Amps: 11.5-12.0
Specification Sensor compatibility: Pre M7 double harness style
Material spec: Incoloy
Required flow rate: Set by pressure switch
Flow detection: 2-PSI Balboa pressure switch
Compatible with: Lite leader box, M3 TUV, Spaform SF100, Catalina, Hydropool, Canadian Spa, Hyrdospa, Marquis Spa, Aegean, and more...
Connections / Fixings: Usually held in with a double aluminum brace. Hi limit sensor pouch on underside. 2" white plastic female sockets to connect to plumbing
Dimensions: Heater length: 15 inches
Heater Diameter: 2 inches
Between terminals: 1.25 inches
Overall length complete: 19.5 inches
Additional notes: You may find cheaper versions of this heater on the internet but they are most likely cheap copies. If it is not an official Balboa product with genuine labeling do not buy it.

If your heater looks the same as this one it most probably is but contact us if you need further help.

Balboa 5.5KW Heater Pressure Switch Style

Type of product: Heater assembly
Make and Model: Balboa
Power: Volts: 230
Hz: 50
KW: 5.5
Amps: 21-22
Specification Sensor compatibility: Pre M7 double harness style
Material spec: Incoloy
Required flow rate: Set by pressure switch
Flow detection: 2-PSI Balboa pressure switch
Compatible with: More commonly used with larger Swim Spas, Hydropool etc
Connections / Fixings: Usually held in with a double aluminum brace. Hi limit sensor pouch on underside. 2" white plastic female sockets to connect to plumbing
Dimensions: Heater length: 15 inches
Heater Diameter: 2 inches
Between terminals: 1.25 inches
Overall length complete: 19.5 inches
Additional notes:

You may find cheaper versions of this heater on the internet but they are most likely cheap copies. If it is not an official Balboa product with genuine labeling do not buy it.

*NOTE* The picture shows the unit with a pressure switch included but the one sent to you does not have a pressure switch included. This will have to purchased separately if required. It also does not come with union sleeves or gaskets only collars.

If your heater looks the same as this one it most probably is but contact us if you need further help.
