Other Heater Assemblies

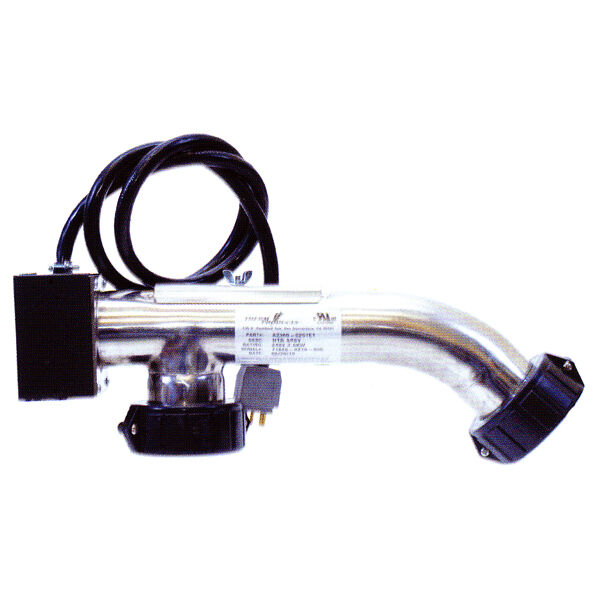

Arctic Spas 3.6kW Curved Tee Heater
| Type of product: | Heater assembly |
| Make and Model: | Arctic Spas curved tee style, has also been made by Aquatemps in the past as well as Thermocore. RMF Related Heater 3.6kw. Part: A2360-5251ET, Serial: 33038-0904-8463. This unit replaces the old Aquatemp heater on Arctic Spas from 2002-2005 |
| Power: | Volts: 230 Hz: 50 KW: 3.6 Amps: 13.5-14.5 |
| Specification | Sensor compatibility: Works with Gecko sensors supplied with an Arctic Spa but can be modified Material spec: Required flow rate: Set by pressure switch Flow detection: 2-PSI Tecmark pressure switch |
| Compatible with: | Arctic Spa Models Cub, Fox, Glacier, Yukon, Frontier, Summit, Klondiker, Kodiac, Tundra 2002 - 2005. This unit will also work with newer models 2005 - 2007 as the pipe work is flexible and can be easily re-positioned. |
| Connections / Fixings: | This is a remote heater that connects to the control system via a grey 5-pin JJ cord. So simple plug and play. You will need to re-connect the pressure switch and also slide the hi-limit sensor back in to the little pocket provided. The union connections are industry standard 2 inch female MPT screw thread connection. |
| Dimensions: | Heater length: 385mm |
| Additional notes: | If your heater looks the same as this one and its on an Arctic then this is the one you need. Contact us if you need further help. |

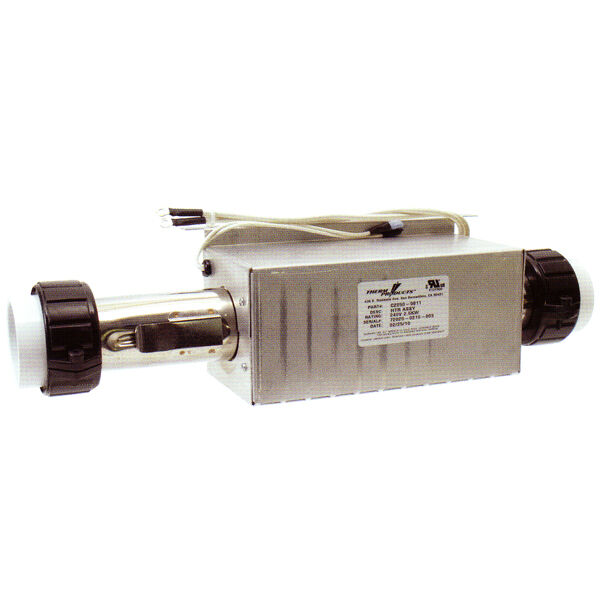

Cal Spa 2.5kW Heater
| Type of product: | Heater assembly |
| Make and Model: | Cal Spa international centered style. C2250-0011, HT3058, 48-3301-10-025H |
| Power: | Volts: 230 Hz: 50 KW: 2.5 Amps: 10.0 |
| Specification | Sensor compatibility: Comes built in with unique hi-limit sensor Material spec: Required flow rate: Set by pressure switch Flow detection: 2-PSI Balboa or Tecmark pressure switch |
| Compatible with: | Cal Spa models in the UK and Europe |
| Connections / Fixings: | You will need to re-connect the pressure switch on completion. The square box part secures to the back of the Balboa built control box, the heater and hi-limit cables come through so you can connect them to the board. The union connections are industry standard 2 inch female MPT screw thread connection. |
| Dimensions: | Heater length: 390mm Heater Diameter: 54mm (internal) Between terminals: N/A Overall length complete: 475mm |
| Additional notes: | If your heater looks the same as this one and its on a Cal Spa then this is the one you need. Contact us if you need further help. |

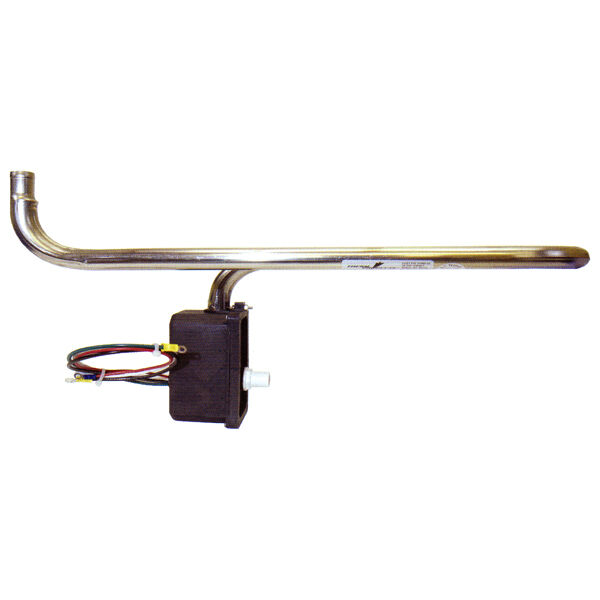

Dimension One 2.1 - 3.4kW Reflections Heater
| Type of product: | Heater assembly |
| Make and Model: | Laing for Dimension One (D1) Reflection Series, known as FastFlo. C3548-1, 01781-20 |
| Power: | Volts: 230 Hz: 50 KW: 2.1kW & 3.4kW (either of these settings can be achieved by a simple wiring change) Amps: 8.4 & 13.6 |
| Specification | Sensor compatibility: Dimension One sensors (Spa Builders) Material spec: Required flow rate: Flow detection: Harwil reed flow switch |
| Compatible with: | Dimension One Reflection Series 1998 to present. Models such as: Aurora, Aurora II, Arena, Caliente, Chairman, Chairman II, Diplomat, Triad, Triad II...... |
| Connections / Fixings: | The heating tube connects on to 3/4" Vinyl tubing. |
| Dimensions: | Heater length: 520mm Heater Diameter: 19mm (internal) Between terminals: N/A Overall length complete: 520mm |
| Additional notes: | If your heater looks the same as this one it most probably is but contact us if you need further help. |

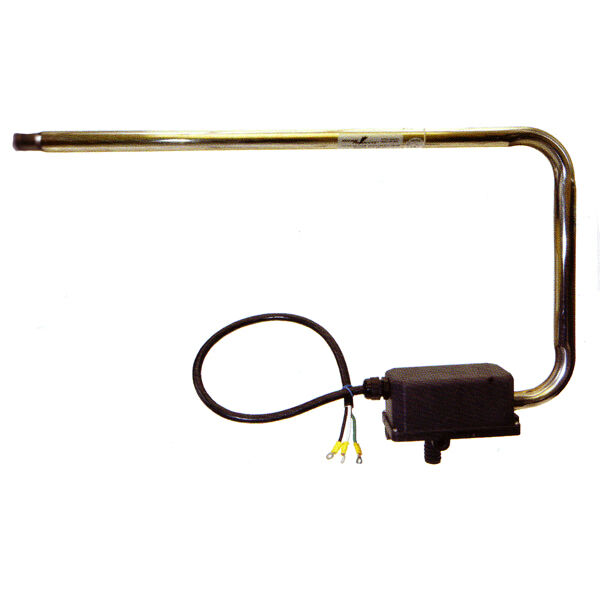

LA Spas 2.7kW Laing Square Back Style Heater
| Type of product: | Heater assembly |
| Make and Model: | Laing for LA Spas (also works with Artesian), square back style. C3236-2A, EL-63003. EL-63002 |
| Power: | Volts: 230 Hz: 50 KW: 2.7 Amps: 10.8 |
| Specification | Sensor compatibility: Gecko |
| Compatible with: | LA Spas - Paradise H2, Solera, H.E.E.T, Oasis, Tuscan, Concord, Fiji, Allure III and Madeira. This heater will also work with Artesian, the square is slightly smaller on an Artesian but connections etc are the same and fits nicely size wise. |
| Connections / Fixings: | The heating tube connects on to 3/4" Vinyl tubing. |
| Dimensions: | Heater length: Heater Diameter: Between terminals: Overall length complete: |
| Additional notes: | If your heater looks the same as this one it most probably is but contact us if you need further help. |
Laing 1.5kW Triple Bend Heater
| Type of product: | Heater assembly |
| Make and Model: | Laing |
| Power: | Volts: 230 Hz: 50 KW: 1.5 Amps: 6.0 |
| Specification | Sensor compatibility: Sensors do not operate the heater, the PCB does. |
| Compatible with: | Will work with some Hot Tubs in the UK, call us for details. |
| Connections / Fixings: | The heating tube connects on to 3/4" Vinyl tubing. |
| Dimensions: | Heater length: 270mm (stainless part) Heater Diameter: 19mm (internal) Between terminals: N/A Overall length complete: 412mm (inc rear bleed nozzle) |
| Additional notes: | This heater has been specially sourced for our company, it will work with some brands of Hot Tub in the UK but you will most likely need to contact us for assistance. It comes with a Hi-Limit reset button on the rear of the heater. |

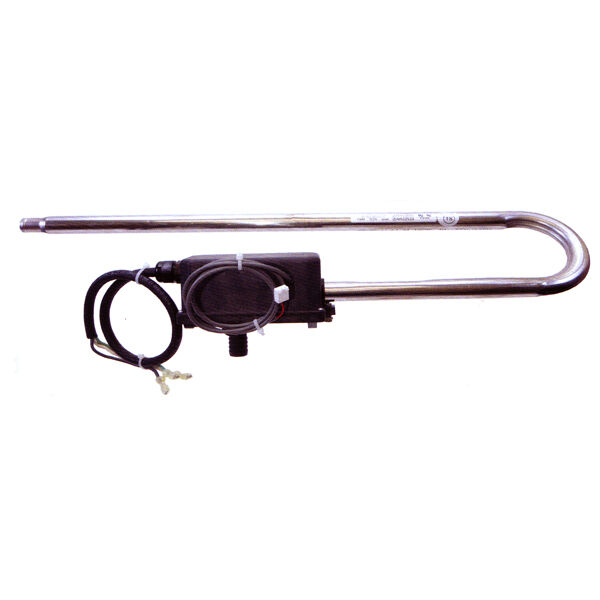

Laing 2.9kW Half Loop Style Heater
| Type of product: | Heater assembly |
| Make and Model: | Laing |
| Power: | Volts: 230 Hz: 50 KW: 2.9 Amps: 11.6 |
| Specification | Sensor compatibility: Sensors do not operate the heater, the PCB does. |
| Compatible with: | Will work with some Hot Tubs in the UK, call us for details. |
| Connections / Fixings: | The heating tube connects on to 3/4" Vinyl tubing. |
| Dimensions: | Heater length: 675mm Heater Diameter: 19mm (internal) Between terminals: N/A Overall length complete: N/A |
| Additional notes: | This unit also replaces the old 2.7kW version of this heater. Comes with Hi limit plug ready to attach to the board. If your heater looks the same as this one it most probably is but contact us if you need further help. |
Thermcore 1.5 inch, 1.5kW Flow Thru Heater
| Type of product: | Heater assembly |
| Make and Model: | Thermcore but supplied to Balboa and Aquatemp |
| Power: | Volts: 230 Hz: 50 KW: 1.5 Amps: 5.0-6.0 |
| Specification | Sensor compatibility: Balboa Pre M7 double harness style, but also uses other paired sensors depending on what system it is operating. Material spec: Required flow rate: Set by pressure switch Flow detection: No pressure switch supplied with the heater |
| Compatible with: | Hot Tubs: Canadian Spa Haliburton, Voyager Spa and more |
| Connections / Fixings: | Usually held in with a metal fixing studs at the top of the heater either side of the main heat terminals. Hi limit sensor pouch on underside. 1.5" white plastic female sockets to connect to plumbing |
| Dimensions: | Heater length: 8.5 inches Heater Diameter: 1.5 inches (actual diameter of heater tube is 2") Between terminals: 1 inch Overall length complete: 11.5 inches |
| Additional notes: | You may find cheaper versions of this heater on the internet but they are most likely cheap copies. If it is not an official Thermcore, Aquatemp or Balboa product with genuine labeling do not buy it. If your heater looks the same as this one it most probably is but contact us if you need further help. |
