Vulcan Elecro Heaters are suitable for use with all types of swimming pools and filtration systems including salt water generators as this range has a stainless steel flow tube with titanium heating elements. Elecro heaters are simple to install requiring only final connection to a mandatory separate RCD by your electrician.
A unique design the end fitting incorporates a weir chamber to induce vortexing of through flowing water to ensure total air purging is achieved in low flow situations.

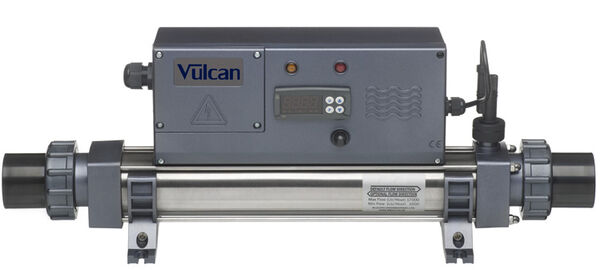

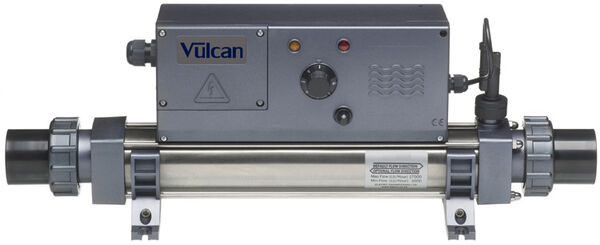

Available with Analogue or Digital controls.
External reversible flow switch allows input (flow) from either direction.
230v 1 phase Power Output and Load requirement. 400v 3 Phase Power Output and Load Requirement
3-kW = 13 Amp, 15-kW = 22 Amp,
4.5-kW = 20 Amp,
6-kW = 27Amp,
9-kW = 40 Amp
12-kW = 52 Amp
15-kW = 66 Amp
Specification (analogue & Digital)
 | Power Supply: 230v single phase or 400v three phase |
| Flow Requirements: Minimum flow:- 3-kW to 6kW = 1m³/h
9-kW to 15kW = 4m³/h
Maximum flow:- 17m³/h |
| Heating Elements: Titanium, High MgO Compaction |
| Flow Tubes: BS 316 Stainless Steel |
| Control Thermostat (analogue): 0>40°C (1°C differential) |
| Control Thermostat (digital): 0>40°C (0.5°C differential) |
| Safety Thermal Cut Out: 55°C (manual Reset) |
| Flow Switch: Gold tipped reed switch with titanium fulcrum pin |
| Wiring: High Temperature, Silicone sheathed, multi-strand copper conductors |
| Contactor: Schneider |
| Seals: Special formula high temperature polymer |
| Water connections: 1.5 inch BSP female thread supplied with 1.5 inch to 50mm ABS Unions |
| Working pressure: 4 Barg maximum |
| Mounting: Floor or wall mounting |
| Standards Compliance: European Electromagnetic Compatibility directive 89/336/EEC and 93/068/EEC
Harmonized: EN55014 - EN55104, EN5501, EN5502, CEI801-4, CEI801-2, CEI801-3, the European low voltage directive 72/23EEC, the harmonized standard EN60335-2-35 |
